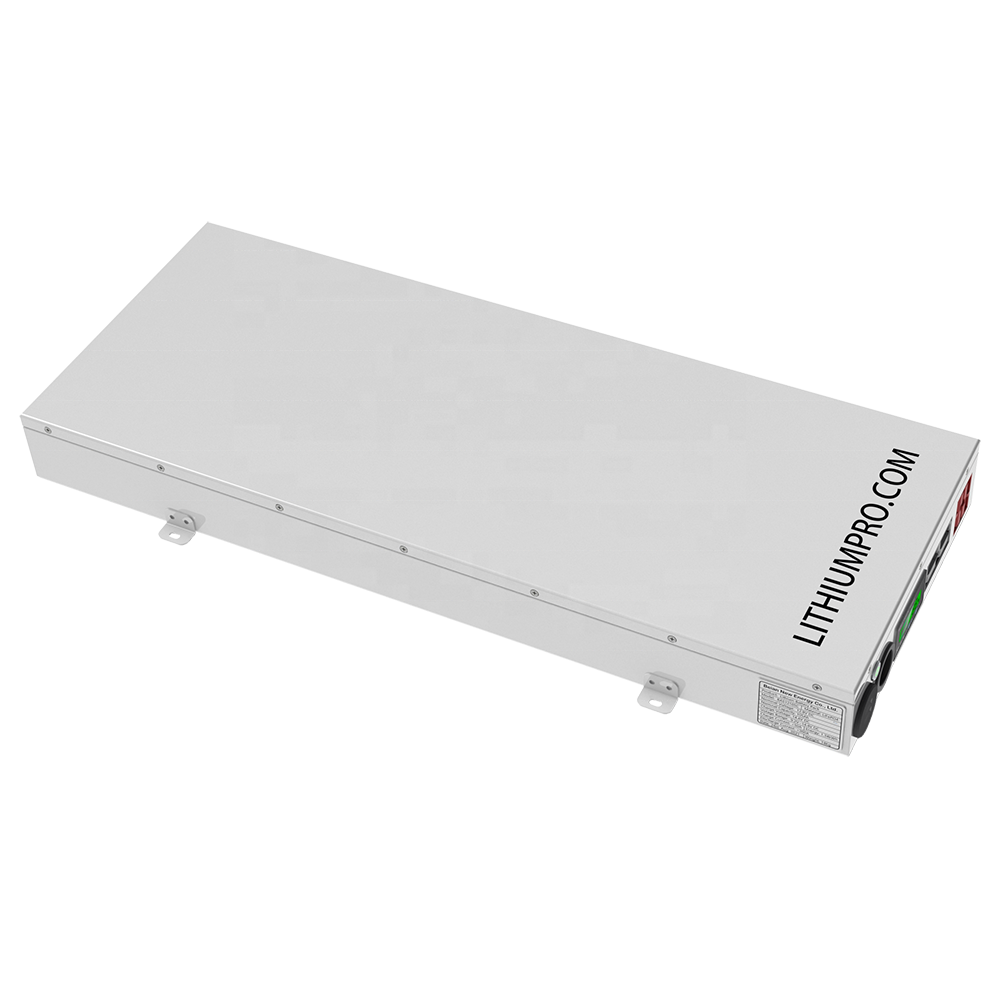

Super Slim 12V105Ah LiFePO4 battery for RV and Marine
Product Parameters
| Item |
Specification |
Unit |
Remark |
| Pack Info |
Model |
LFP-12105C |
|
|
| Type |
Prismatic |
|
|
| Material |
LiFePO4 |
|
|
| Cell Spec |
Battery Cell Model |
IFP27175200A-105Ah |
|
|
| Battery Cell Spec. |
3.2V105Ah |
|
|
| Pack Spec |
Assemble Style |
4S1P |
|
|
| Nominal Voltage |
12.8 |
V |
|
| Nominal Capacity |
105 |
Ah |
@25℃ |
| Energy |
1.344 |
kWh |
|
| Energy Density |
134 |
Wh/kg |
|
| Charge Voltage |
14.4 |
V |
Voltage Range10~14.4V |
| Discharge End Voltage |
10 |
V |
| Standard Charge Current |
21 |
A |
0.2C |
| Max Continuous Charge Current |
52.5 |
A |
0.5C |
| Standard Discharge Current |
52.5 |
A |
0.5C |
| Max Continuous Discharge Current |
105 |
A |
1C |
| Peak Discharge Current |
315 |
A |
3C |
| Charge Temp. Range |
0~45 |
℃ |
|
| Discharge Temp. Range |
-20~60 |
℃ |
|
| Storage Temp. Range |
10~30 |
℃ |
|
| Dimension |
495*250*65 |
mm |
|
| Weight |
13 |
Kg |
|
| Cycle life |
3000 |
Cycles |
@1C/1C 25℃ |
| BMS |
The BMS default specification is below, if your load working current over the specification,
please contact us. Need to be custom-made. |
| The Max continuous current |
150 |
A |
|
12V105Ah LiFePO4 battery for RVs/boats: high - density, wide - temp, long - cycle.
| Battery Cell Spec |
3.2V105Ah |
| Assemble Style |
4S1P |
| Energy |
1.344kWh |
| Dimension |
495*250*65mm |
| Weight |
13Kg |
