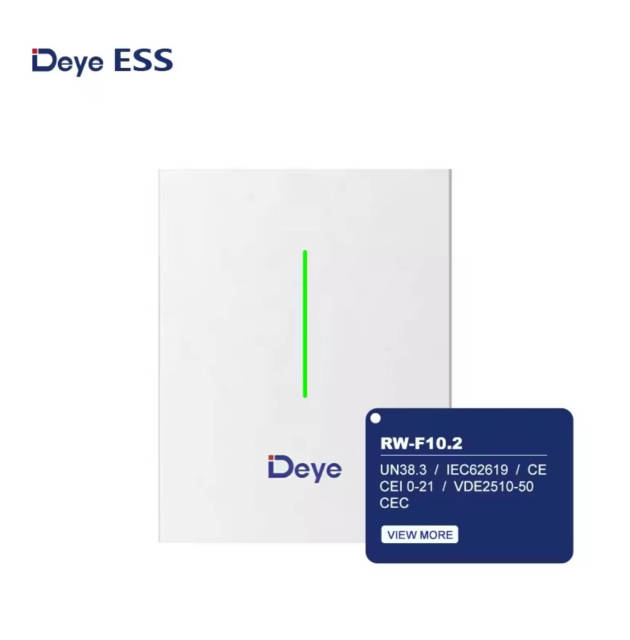

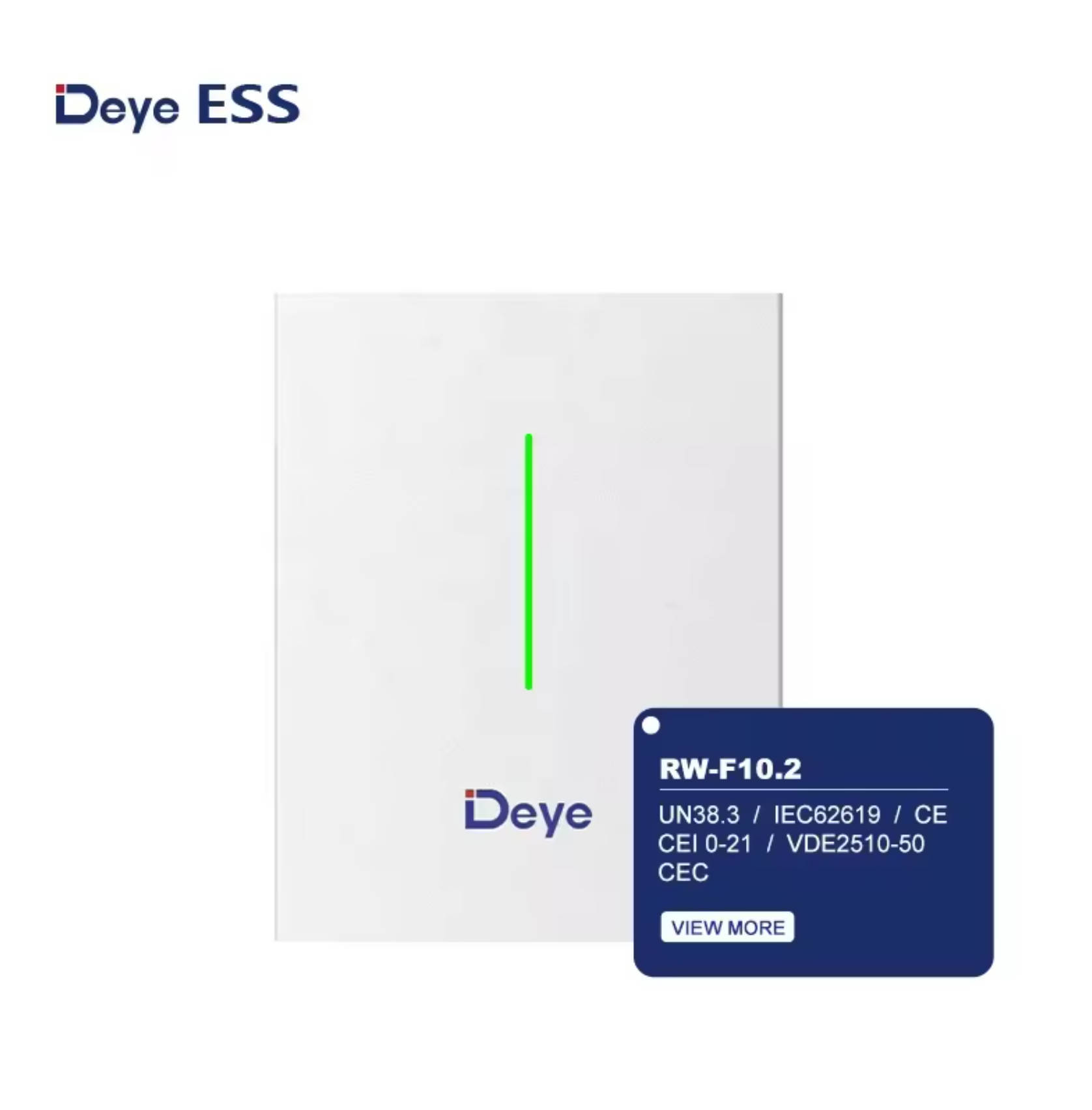

LiFePO4 High Performance Solar Inverter Converter Deye 10.2KWH 51.2V ESS Energy Storage All-in-one System RW-F10.2 IP65 Hybrid

No.1601615491118
$1706.00
Color:
WHITE
WHITE
System Energy Range:
32.6KW(43.72hp)
Capacity:
326-327KWH(1112358.17-1115770.31btu)
System Voltage Range:
43.2~57.6V
GET A QUOTE
  • LiFePO4 High Performance Solar Inverter Converter Deye 10.2KWH 51.2V ESS Energy Storage All-in-one System RW-F10.2 IP65 Hybrid
  • LiFePO4 High Performance Solar Inverter Converter Deye 10.2KWH 51.2V ESS Energy Storage All-in-one System RW-F10.2 IP65 Hybrid
  • LiFePO4 High Performance Solar Inverter Converter Deye 10.2KWH 51.2V ESS Energy Storage All-in-one System RW-F10.2 IP65 Hybrid
  • LiFePO4 High Performance Solar Inverter Converter Deye 10.2KWH 51.2V ESS Energy Storage All-in-one System RW-F10.2 IP65 Hybrid
  • LiFePO4 High Performance Solar Inverter Converter Deye 10.2KWH 51.2V ESS Energy Storage All-in-one System RW-F10.2 IP65 Hybrid
  • LiFePO4 High Performance Solar Inverter Converter Deye 10.2KWH 51.2V ESS Energy Storage All-in-one System RW-F10.2 IP65 Hybrid
  • LiFePO4 High Performance Solar Inverter Converter Deye 10.2KWH 51.2V ESS Energy Storage All-in-one System RW-F10.2 IP65 Hybrid

Description

Product descriptions from the supplier

Product Description

Model
RW-F10.2
RW-F10.2-B
Main Parameter
Main Parameter
LiFePO4
Built-in Circuit Breaker
125A 4P, 60Vdc
Capacity (Ah)
200
Scalability
Max. 32 pcs pack (Max.326kWh) in parallel
Max. 32 pcs pack (Max.327kWh) in parallel
Nominal Voltage (V)
51.2
Operating Voltage (V)
43.2~57.6
Nominal Energy (kWh)
10.2
10.24
Usable Energy (kWh)
9.2 (90%DOD)
Dimension (W/H/D, mm)
600*760*200 (Without hanging board)
600*830*200 (Without hanging board)
Weight Approximate (kg)
104
107
IP Rating of Enclosure
IP65
Operating Temperature
Charge: 1°C~55°C / Discharge: -20°C~55°C
Altitude
≤3000m
Cycle Life
≥6000 (25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL)
Installation
Wall-Mounted, Floor-Mounted

Communication Port
CAN2.0, RS485

Warranty Period
10 years

Energy Throughput
32MWh (25°C, 0.5C/0.5C, 70%EOL)

Certification
UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50,
CEC
UN38.3, FCC, UL1973, UL9540A

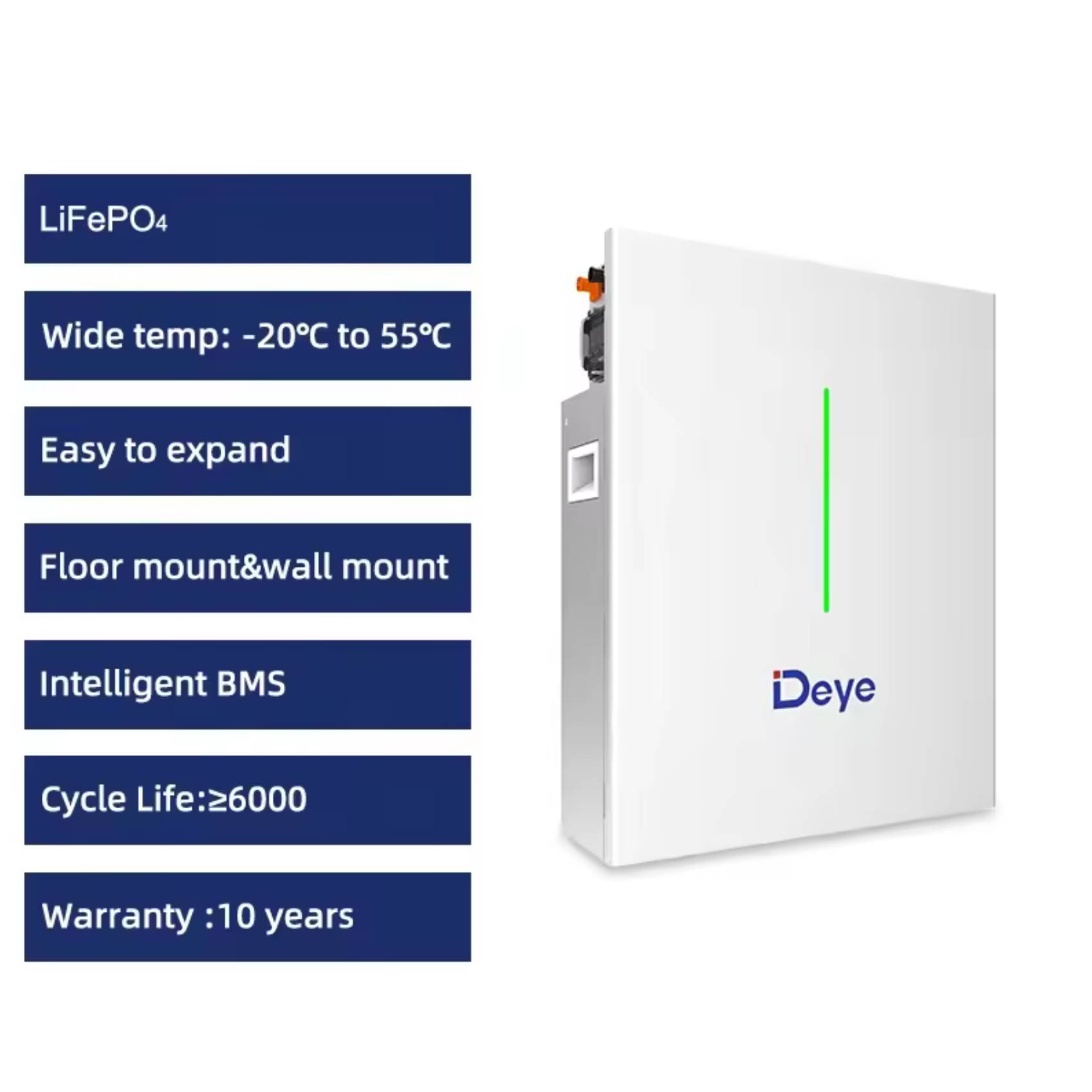

KEY STRENGTHS
Cobalt Free Lithium Iron Phosphate (LFP) Battery, safety and long
lifespan and high-energy density. Low Voltage safety connection.

Modular design, easy to expand, Max. 32 units in parallel.
The RW-F10.2 has a maximum capacity of 326kWh.
The RW-F10.2-B has a maximum capacity of 327kWh and supports
hand-in-hand rapid parallel expansion.
Suited to residential and commercial applications for increasing the
self-consumption ratio

Built-in Intelligent BMS, providing complete protection. Natural
cooling, IP65, wide temperature range: -20°C to 55°C.

Product Images
Packing&Shipping
Related Products
Company Introduction
Beian New Energy Co., Ltd. is a high-tech new energy enterprise based in Suzhou, China.We focus on customized solutions and products of lithium-ion batteries.

Our products are applied in fields such as solar energy storage systems, electric vehicles, electric forklifts, marine, golf carts, and AGV etc.

Beian New Energy also provides high voltage DC contactors,connectors, and manual service disconnects (MSD) for electric vehicles and energy storage systems (ESS).

Beian New Energy a total lithium-ion battery solution provider, offering a quality guarantee ranging from 1 to 10 years, Welcome your consultation.
FAQ
Q1:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. For urgent case, please call us or tell us in your email so that
we'll regard your inquiry priority.

Q2.Do you have MOQ for Your Batteries?
A: We want to support our customer without MOQ request.
Q3. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q4. What about the lead time?
A. Sample needs 7 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q5.Is it OK to print my logo on the product?
A: Yes. We welcome OEM orders.

Q6:How long does the warranty?
A: In general, the time is 1 year.

Q7: What is your terms of payment?
A: We accept T/T and L/C

Q8.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q9.How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT for samples. For mass order, you can choose Sea or Air shipment.

Q10:Can we visit your factory?
A: Warmly welcome. Our factory located in shenzhen, near Guangzhou.
