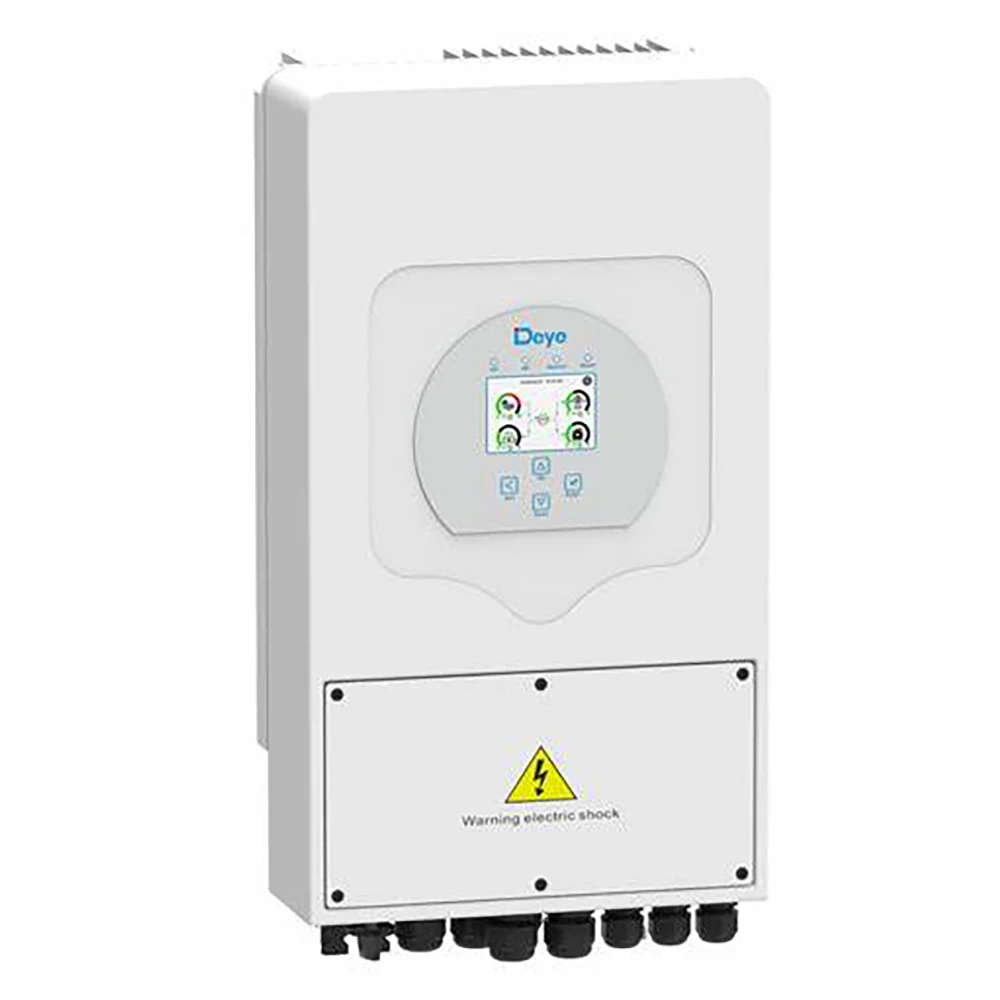

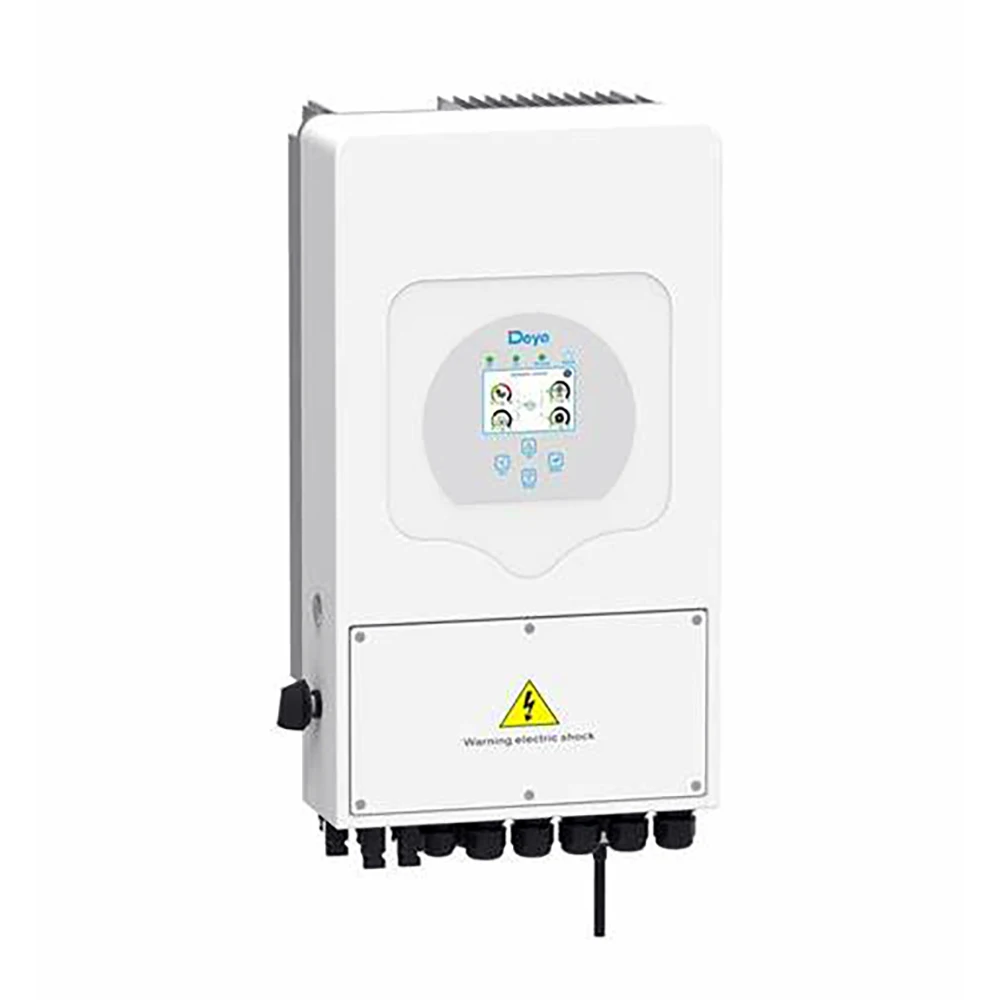

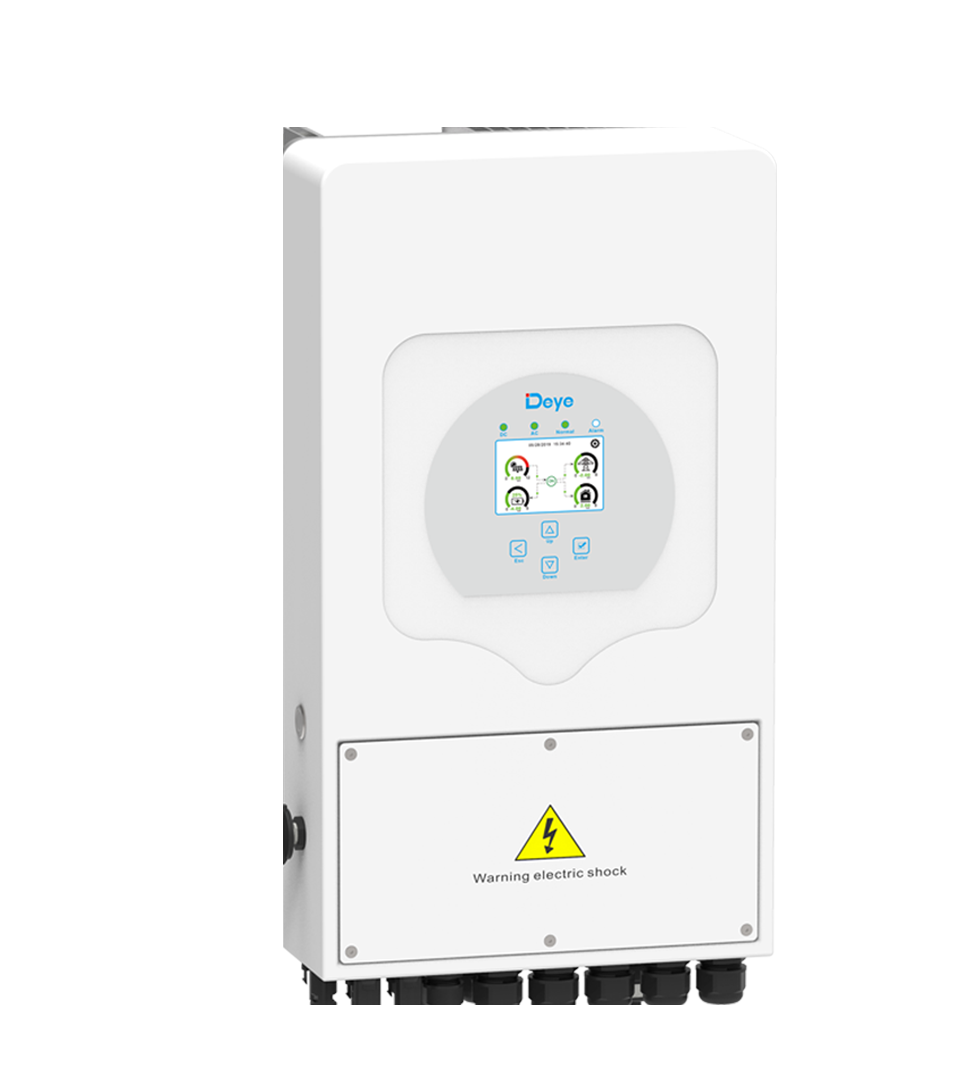

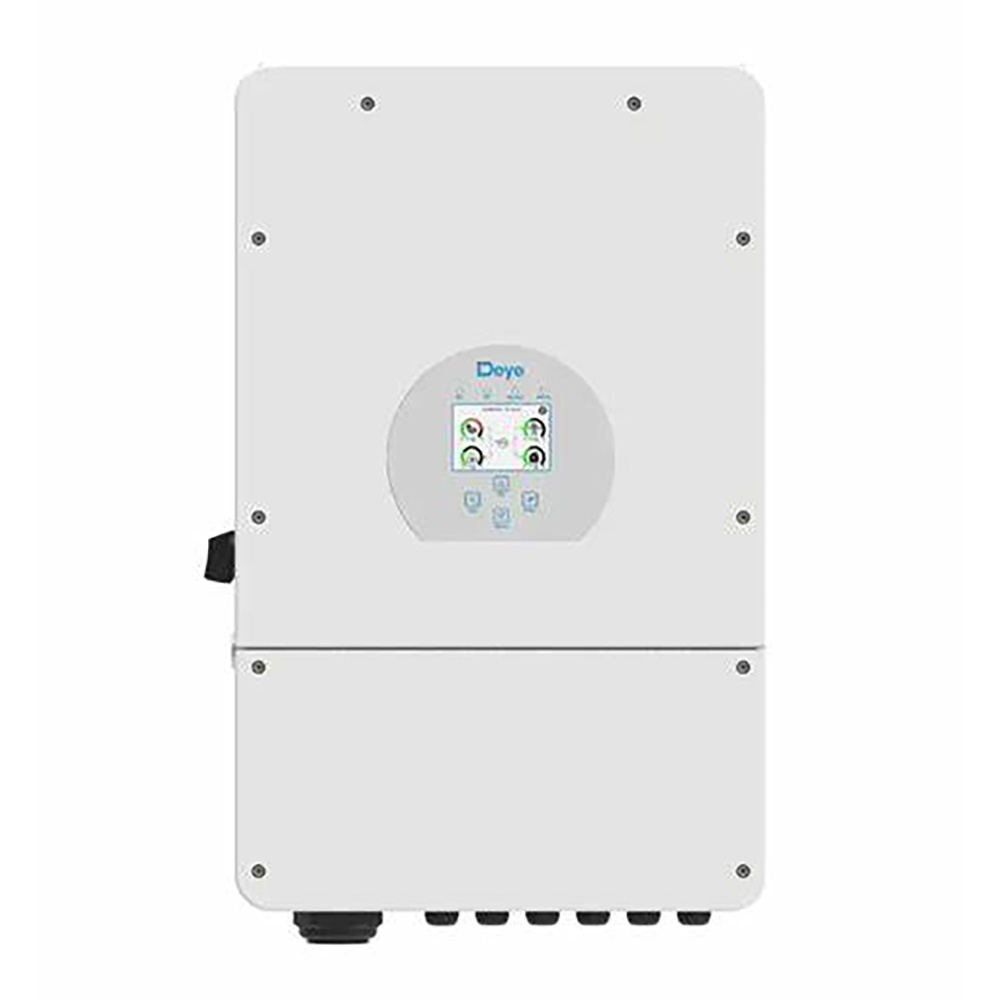

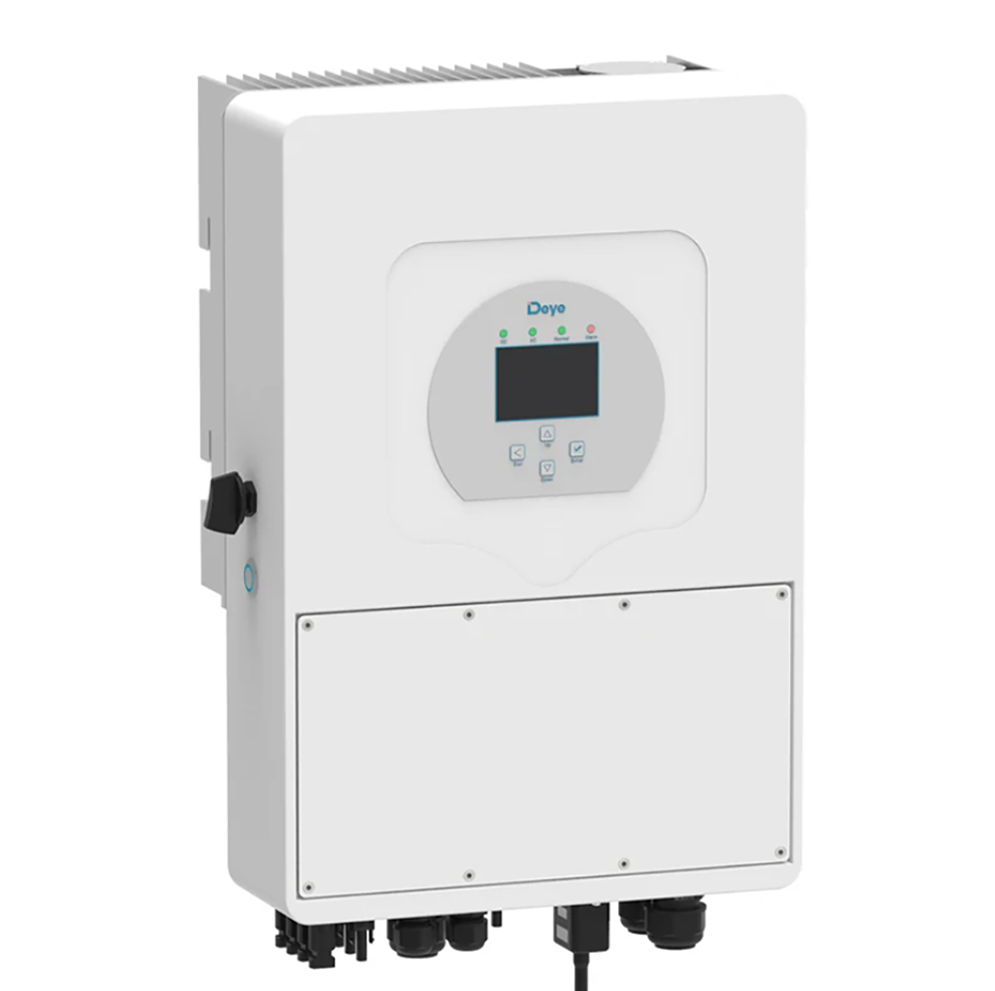

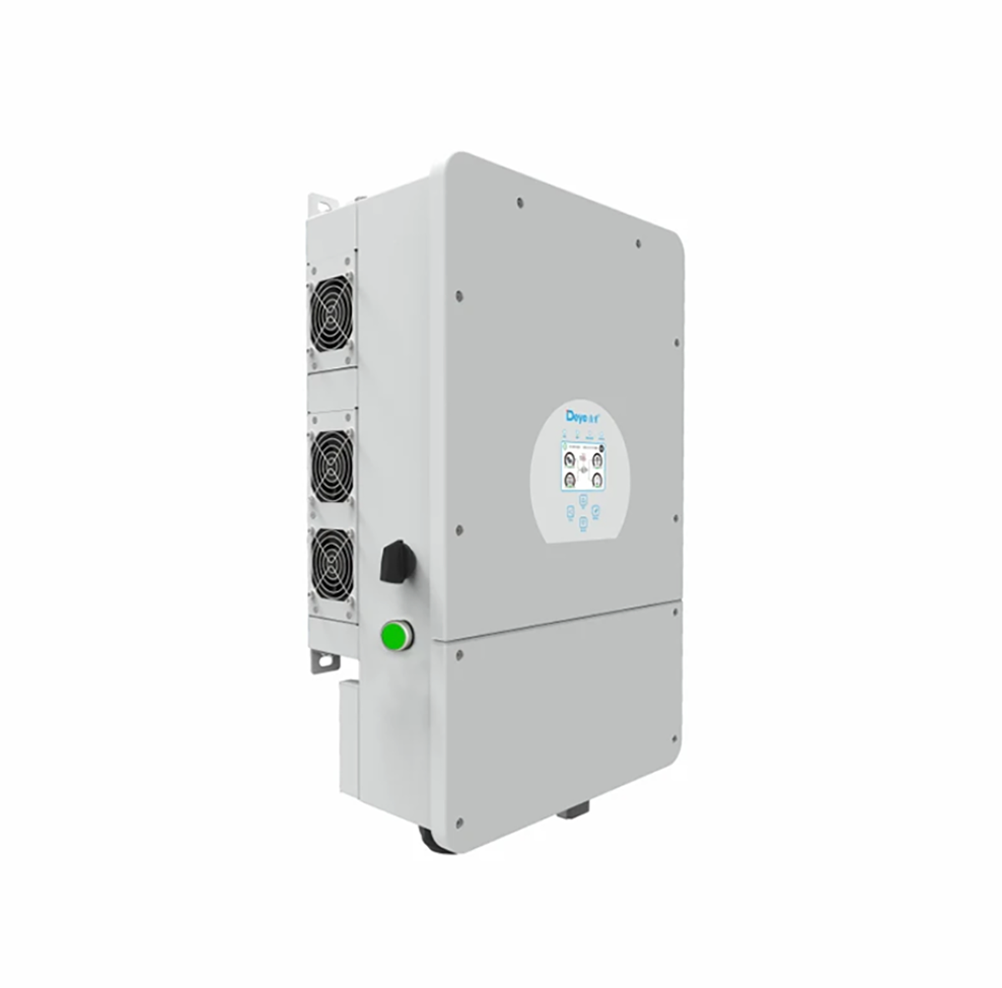

Introducing the Deye , a state-of-the-art single-phase hybrid inverter engineered to enhance energy storage and utilization for residential and commercial applications. This inverter embodies advanced technology and robust design, ensuring unparalleled energy efficiency and reliability.
Specification:
| Model | SUN-8K-SG04LP3 | SUN-10K-SG04LP3 | SUN-12K-SG04LP3 |
| Battery Input Data | |||
| Battery Type | Lead-acid or Li-lon | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 190A | 210A | 240A |
| Max. Discharging Current (A) | 190A | 210A | 240A |
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Optional | ||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
| PV String Input Data | |||
| Max. DC Input Power (W) | 10400W | 13000W | 15600W |
| Rated PV Input Voltage (V) | 550V (150V~800V) | ||
| MPPT Range (V) | 200V-650V | ||
| Start-up Voltage (V) | 160V | ||
| Full Load DC Voltage Range | 350-650 | ||
| PV Input Current (A) | 13+13 | 26+13 | |
| No.of MPPT Trackers | 2 | ||
| No.of Strings Per MPPT Tracker | 1+1 | 2+1 | |
| AC Output Data | |||
| Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W |
| Peak Power (off grid) | 2 times of rated power, 10 S | ||
| Output Frequency and Voltage | 50/60Hz; 230/400Vac (Three phase) | ||
| Grid Type | Current Harmonic Distortion | ||
| Protection | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor | ||
| Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage | |||
| Protection | |||
| Surge protection | DC Type II / AC Type II | ||
| Communication Interface | RS485/RS232/CAN | ||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||
| Cabinet size(W*H*D)[mm] | 422×658×254(Excluding connectors and brackets) | ||
| Weight[kg] | 38 | ||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | ||
| Type Of Cooling | Intelligent air cooling | ||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98,G99, VDE-AR-N 4105 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
Q1:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. For urgent case, please call us or tell us in your email so that we'll regard your inquiry priority.
Q2.Do you have MOQ for Your Batteries?
A: We want to support our customer without MOQ request.
Q3. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q4. What about the lead time?
A. Sample needs 7 days, mass production time needs 3-5 weeks, it depends on order quantity.
Q5.Is it OK to print my logo on the product?
A: Yes. We welcome OEM orders.
Q6:How long does the warranty?
A: In general, the time is 1 year.
Q7: What is your terms of payment?
A: We accept T/T and L/C
Q8.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q9.How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT for samples. For mass order, you can choose Sea or Air shipment.
Q10:Can we visit your factory?
A: Warmly welcome. Our factory located in shenzhen, near Guangzhou.
