Name: Beiamp PEC200 1500V200A Energy Storage Battery System LiFePO4 ESS Connector Socket with 0.6mOhm Resistance IPXX Waterproof
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601202701561
Price: 10.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Key attributes

Application

Other

Type

Other

Housing Material

High strength flame retardant plastic

Gender

Female

Model Number

PEC200 socket

Place of Origin

China

Brand Name

Beiamp

Voltage

1500Vdc

Current

200A Max

Temperature

-40~125 Celsius

Resistance

0.6mOhm

Contact material

Silver-plated copper

Application

Energy storage system

Product type

socket

Waterproof level

IPXX

Packaging and delivery

Selling Units

Single item

Single package size

5X4X8 cm

Single gross weight

0.300 kg

Product descriptions from the supplier

Warning/Disclaimer

California Proposition 65 Consumer WarningView more

Product Description

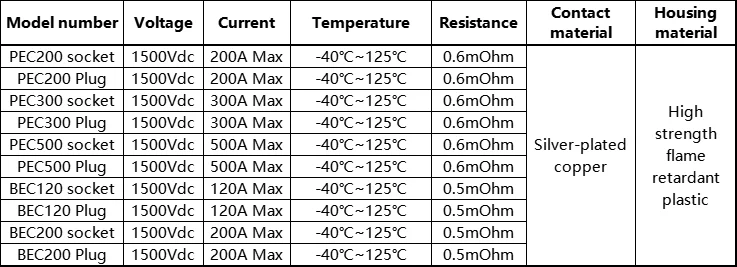

Specification

item	value
Place of Origin	China
Brand Name	Beiamp
Model Number	PEC200 socket
Type	Other
Application	Other
Gender	Female
Housing Material	High strength flame retardant plastic
Voltage	1500Vdc
Current	200A Max
Temperature	-40~125 Celsius
Resistance	0.6mOhm
Contact material	Silver-plated copper
Application	Energy storage system
Product type	socket
Waterproof level	IPXX

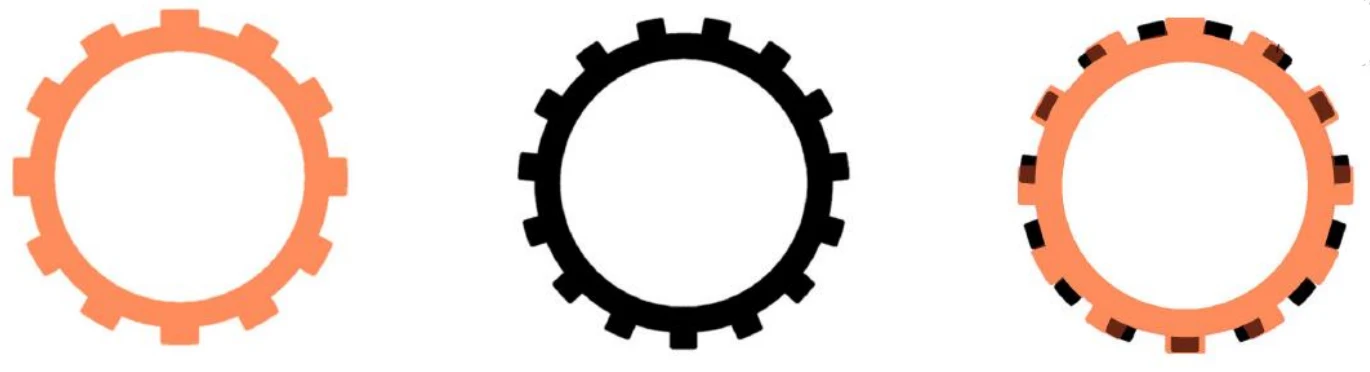

The following is a diagram of the X key, Y key and XY configuration. The X key plug has a total of 12 ribs, and the Y key has a total of 15 ribsTendon. The number of ribs and grooves designed for connectors with different keys is not the same, and the thickness and width of the corresponding ribs and grooves are not the sameIn this way, different keys can not be inserted into each other.

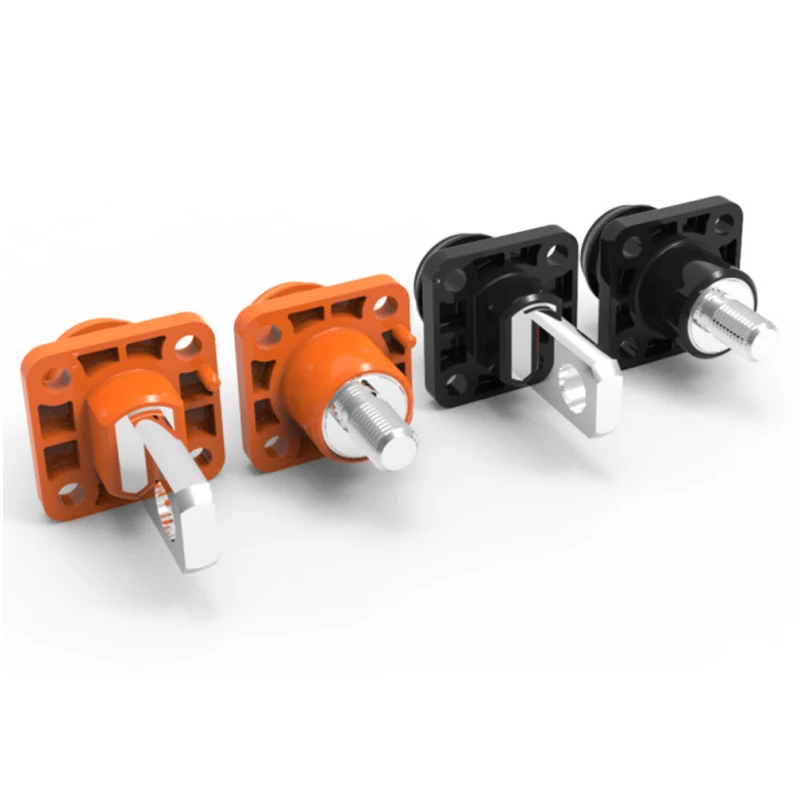

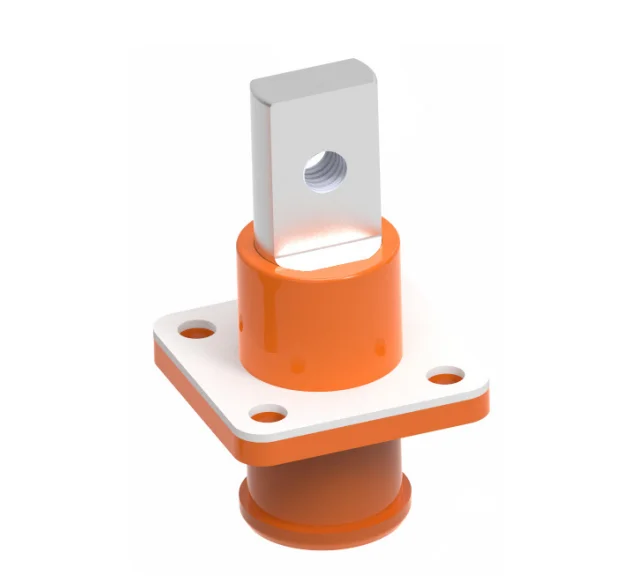

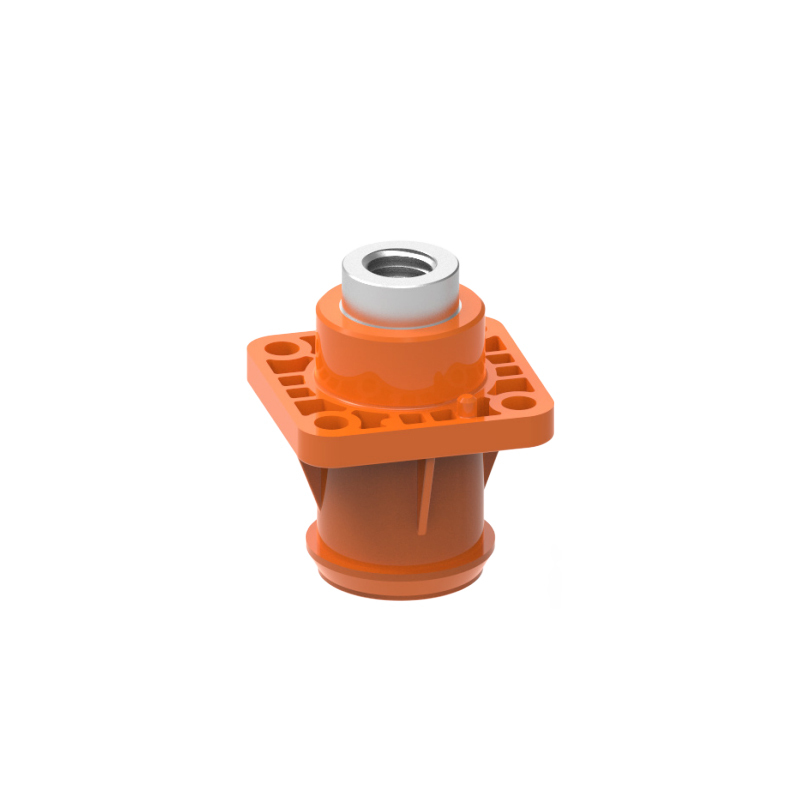

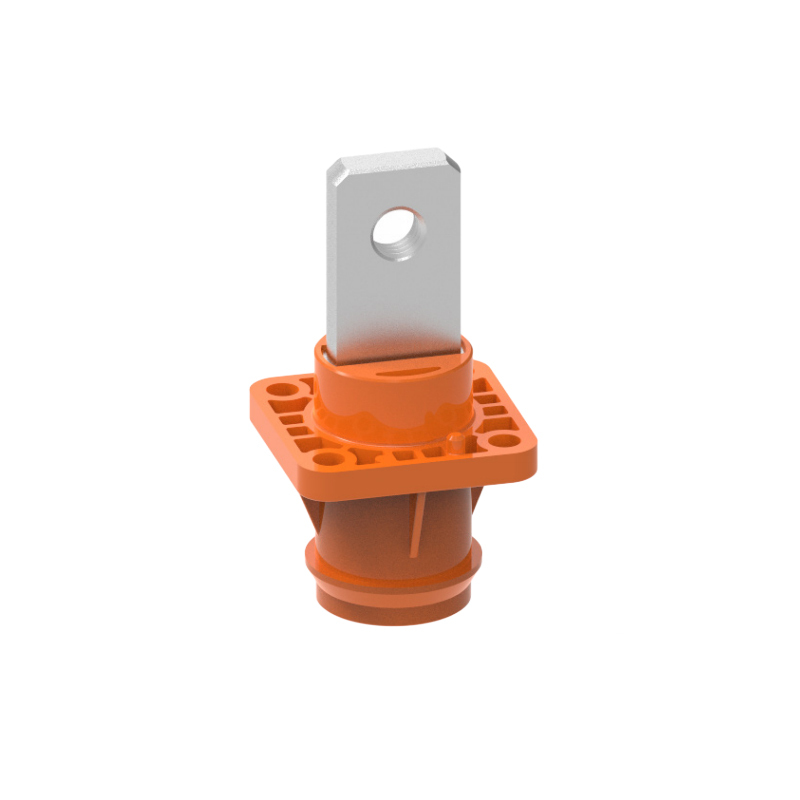

Threaded holeWaist-shaped hole

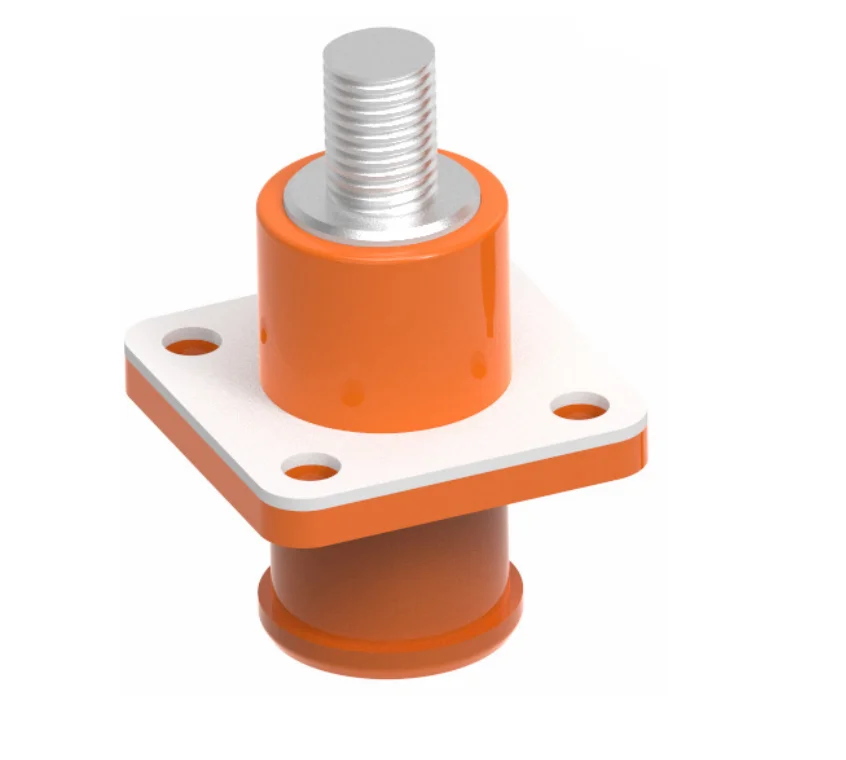

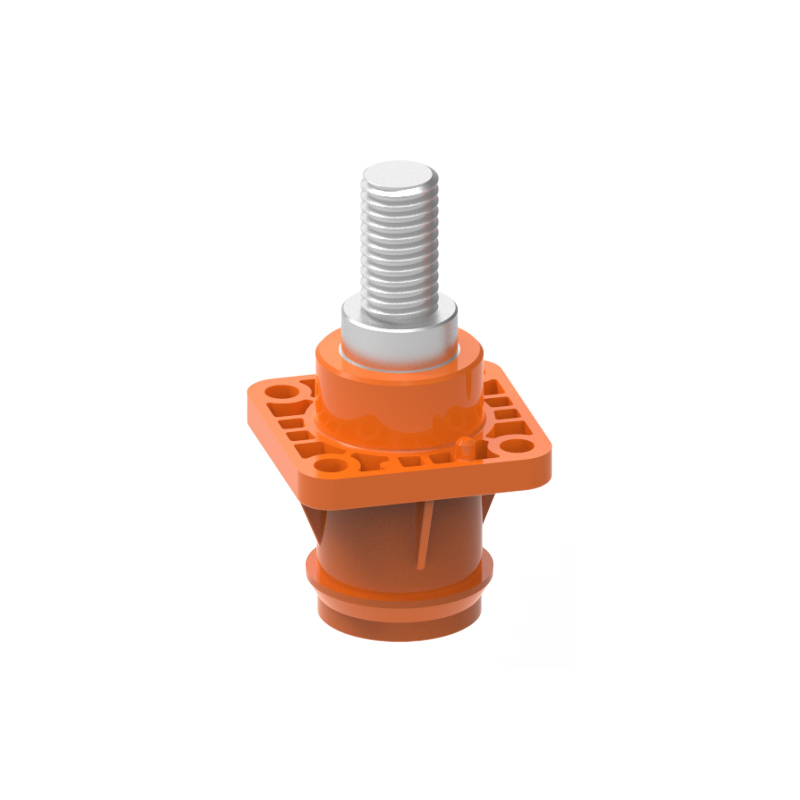

Stud

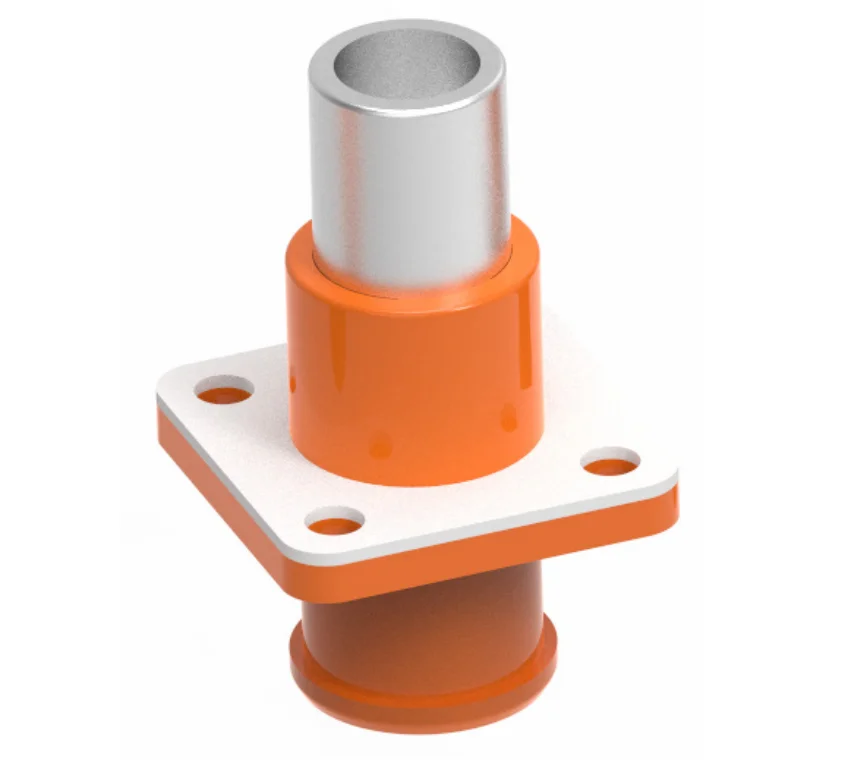

Cold-pressed hole

Title goes here.

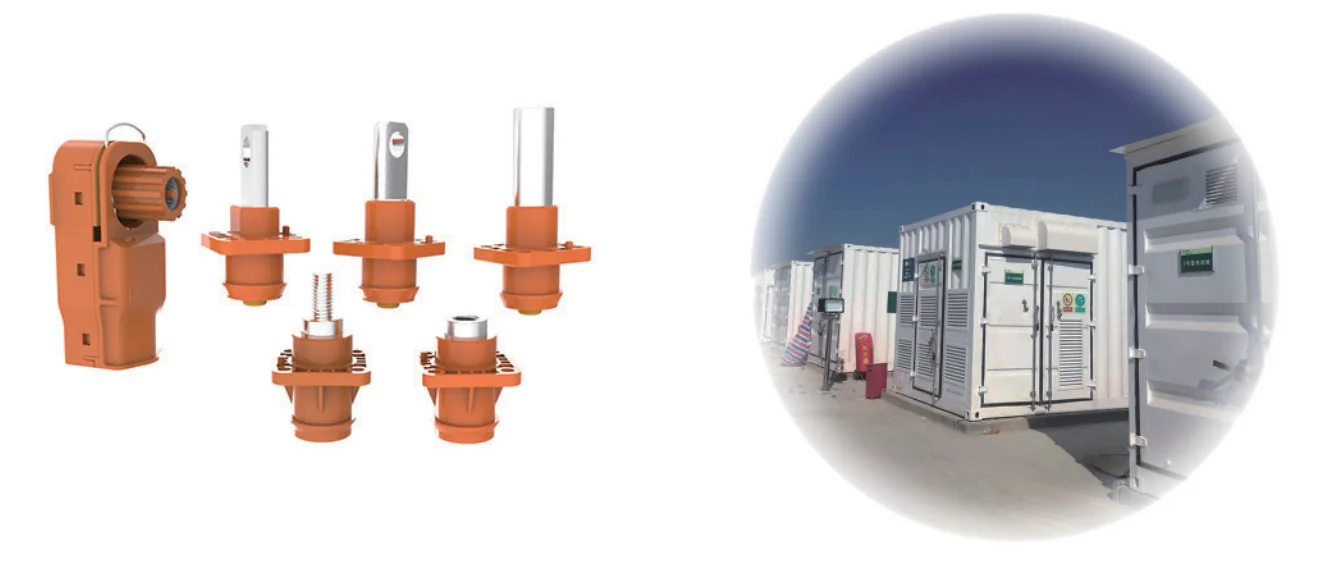

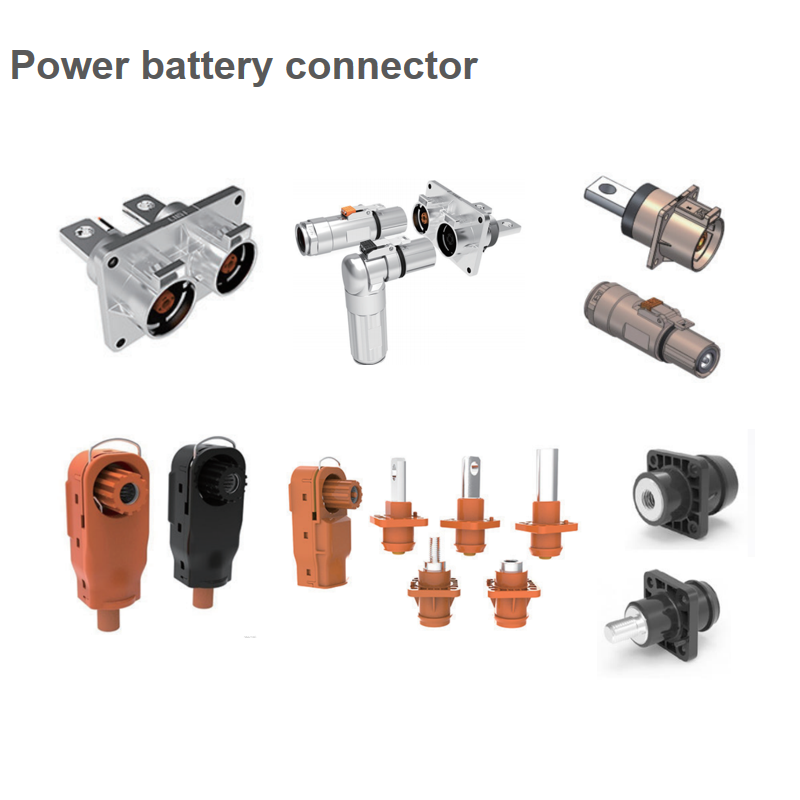

Energy storage quick connectors are widely used connection devices in energy storage systems, primarily used for connecting energy
storage equipment, battery packs, inverters, and other related devices. Here's a detailed introduction to energy storage quick
connectors:
Definition and Function
Energy storage quick connectors, as their name suggests, are connectors that enable rapid connection and disconnection of various
components within an energy storage system. Their primary functions include:
* Efficient Power Transmission: Ensuring efficient and stable power transmission within the energy storage system.
* Connection Stability: Maintaining stable connections between components through reliable connection methods, minimizing power
losses or system failures caused by poor connections.
* Safety: Incorporating features like reverse polarity protection to ensure that no short circuits, electric shocks, or other
safety incidents occur during connection and disconnection.

Types and Connection Methods
Energy storage quick connectors primarily come in several types and connection methods, including:

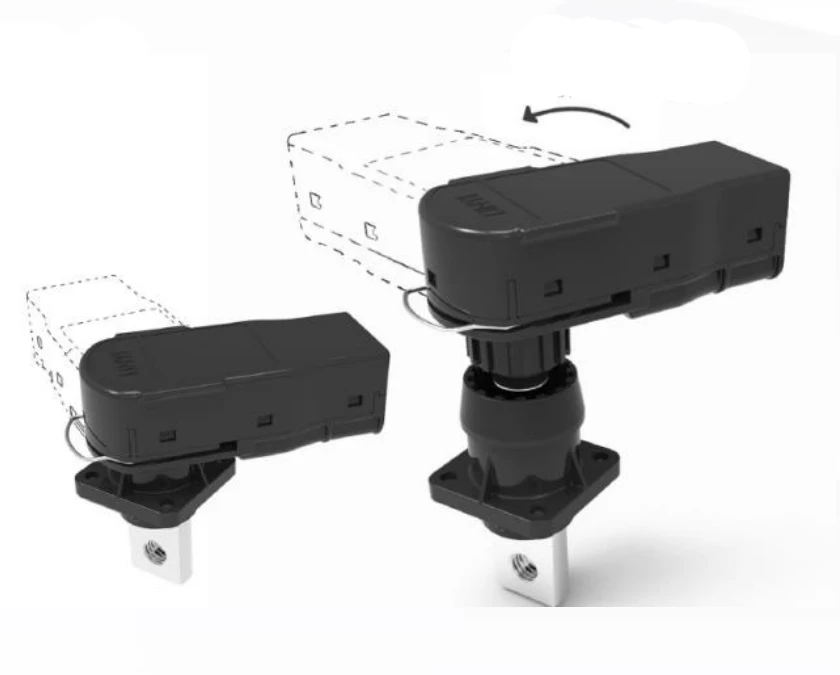

* Lever-type: Primarily used for round pins, allowing for one-handed operation. The connection method can be adjusted based on
different forces and speeds.
* Press-fit type: Mainly for rectangular pins, where the pins are pressed into the connector to achieve connection.
* Screw-type: Used for rectangular pins, connecting through rotating the pins.
* Plug-in type: Also for rectangular pins, connecting by inserting the pins.

Each type of connector has its unique characteristics, suitable for different application scenarios and connection requirements.
Application Scenarios
Energy storage quick connectors have wide applications in various fields, including but not limited to:
* Energy storage cabinets, stations, and mobile energy storage vehicles: Connecting battery packs, inverters, and other
components within these facilities.
* Residential energy storage systems: With the increasing demand for home energy storage, quick connectors are becoming more
prevalent in these systems.
* Photovoltaic and wind power stations: Connecting battery packs to the grid or other equipment in these power stations.
* Electric vehicle charging facilities: Facilitating battery pack connections in charging infrastructure for electric vehicles.
* Portable power banks and industrial equipment: Connecting and powering battery packs in portable power banks and industrial
devices.

Characteristics and Advantages
Energy storage quick connectors offer the following characteristics and advantages:
* High Current, Low Resistance: Meeting the requirements of high-power energy storage systems, ensuring efficient power
transmission.
* High Reliability: Made with high-quality materials and advanced manufacturing processes, ensuring the reliability and
durability of the connectors.
* Strong Safety: Incorporating features like reverse polarity protection to ensure safety during connection and disconnection.
* Easy Installation: Some quick connectors support rapid installation and removal, improving work efficiency and convenience.

Conclusion
Energy storage quick connectors are indispensable components in energy storage systems, enabling efficient, stable, and safe
connections between various components to work together for energy storage and conversion. As energy storage technology continues
to evolve and expand its application areas, the market demand for energy storage quick connectors will also grow continuously.

Feiyu Chen Introduction

Position: Sales Engineer

Business experience: Entered the lithium-ion battery industry in 2010, engaged in the production and manufacturing of lithium-ion batteries, and the R&D and manufacturing of lithium-ion battery packs.Participated in the development of electric bicycle battery packs, forklift battery packs, and electric vehicle battery packs.Familiar with cylindrical battery pack technology, ternary and lithium iron phosphate battery technology details.Any questions about lithium-ion batteries, please contact me, I will provide you with detailed technical services.

FAQ

Q1. Can we put different lithium battery pack in parallel or series by ourselves?
> Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:
1> Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself, It may damage the battery or reduce the cycle life of battery.

Q2. Can we put different LiFePO4 battery pack in series by ourselves?
> You can buy big voltage packs directly from us.We don’t suggest to connect them in series by yourself, this may damage the battery or reduce the cycle life of the pack.

Q3. Is BMS included in the battery pack?
> Yes, our battery pack includes BMS.

Q4. What is your warranty?
> We offer 1~5 years warranty depend on different products.

Q5:What is your terms of payment?
> T/T recommended, Paypal and Western Union acceptable.
1> Sample order: Full payment made when PI received.
2> Mass production order:30% down payment when PI received, 70% before shipment.

Q6. How do you ship the lithium battery packs?
> For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 100KG, can be shipped by air or by sea, by sea is cheaper.
