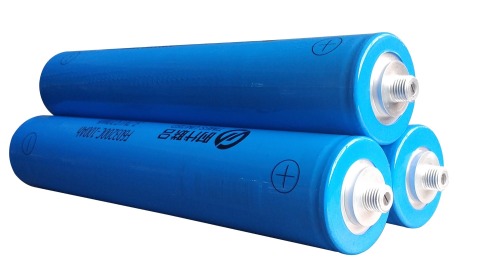

| No. | Item | F603200C-100Ah |
| 1 | Nominal Capacity | 100Ah ,0.5 C discharging（25±2℃） |
| 2 | Nominal Voltage | 3.2V |
| 3 | Charge Ending Voltage | 3.65V |
| 4 | Discharge Ending Voltage | 2.5V（≥0℃） 2.0V（< 0℃） |
| 5 | Standard Charging Method | 25±2℃ 0.5C constant current charge to 3.65V, then constant voltage 3.65V charge till charged current declines to ≤ 0.05C |
| 6 | Standard Discharging Method | 25±2℃ 0.5C constant current discharge to 2.5V |
| 7 | Max. Pulse Charging Current | 1.5C (15℃～45℃, 50%SOC) ≤30S |
| 8 | Max. Pulse Discharging Current | 3C (15℃～45℃, 50%SOC) ≤30S |
| 9 | Operating environment | Charging: -0℃-55℃, max.90%RH Discharging: -20℃-55℃, max.90%RH |
| 10 | Impedance | ＜0.6mΩ |
| 11 | Size | Diameter:60±1mm Cell Height:320±1mmCell Total Height with Poles:338±1mm |
| 12 | Cell Weight (Not include PCB) |
1.90kg±0.2kg |
| 13 | Mass Energy Density | 168Wh/Kg |
| 14 | Volume Energy Density | 364Wh/L |
| 15 |
Cycle Life |
Not less than 80% initial capacity after 2000 Cycles. Test condition: 25±2℃ Charge：1C to 3.65V, then constant voltage 3.65V charge till charged current declines to ≤ 0.05C Discharge：1C to 2.5V When the discharge capacity reduced to 80% of rated capacity, Stop testing. |
