Description
Item | Specification | Unit | Remark | |

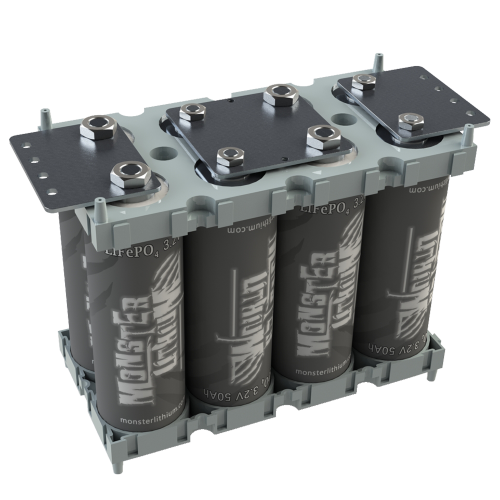

Pack Info. | Model | BAM-LFP12100A | ||
Type | Cylindrical | |||
Material | LiFePO4 | |||
Cell Spec. | Battery Cell Model | F602000C-50Ah | ||
Battery Cell Spec. | 3.2V50Ah | |||
Pack Spec | Assemble Style | 4S2P | ||
Nominal Voltage | 12.8 | V | ||
Nominal Capacity | 100 | Ah | @25℃ | |
Energy | 1.280 | kWh | ||
Energy Density | 116 | Wh/kg | ||
Charge Voltage | 14.4 | V | Voltage Range10~14.4V | |
Discharge End Voltage | 10 | V | ||
Standard Charge Current | 20 | A | 0.2C | |
Max Continuous Charge Current | 50 | A | 0.5C | |
Standard Discharge Current | 50 | A | 0.5C | |
Max Continuous Discharge Current | 100 | A | 1C | |
Peak Discharge Current | 300 | A | 3C | |
Charge Temp. Range | 0~45 | ℃ | ||
Discharge Temp. Range | -20~60 | ℃ | ||
Storage Temp. Range | -10~30 | ℃ | ||
Dimension | 128*256*214 | mm | ||
Weight | 11 | Kg | ||
Cycle life | 2000 | times | @0.5C/1C 90%DOD | |
BMS | The BMS default specification is below, if your load working current over the specification, please contact us. Need to be custom-made. | |||
The Max continuous current | 100 | A |
